XPS Grooved Water Underfloor heating Insulation Board 1200x600x25mm
XPS Grooved Water Underfloor heating Insulation Board 1200x600x25mm
Couldn't load pickup availability

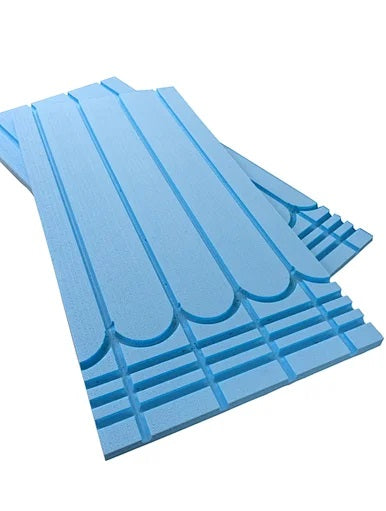

XPS300 grooved insulation boards 1200x600x25mm 16mmPipe, 150mm Gaps - Specialized insulation panels designed for underfloor water heating systems. Â
-
Extruded Polystyrene (XPS): The core material of XPS with a Kpa of 300, offers excellent thermal insulation properties, providing an effective barrier to minimize heat loss from the underfloor heating system.
-

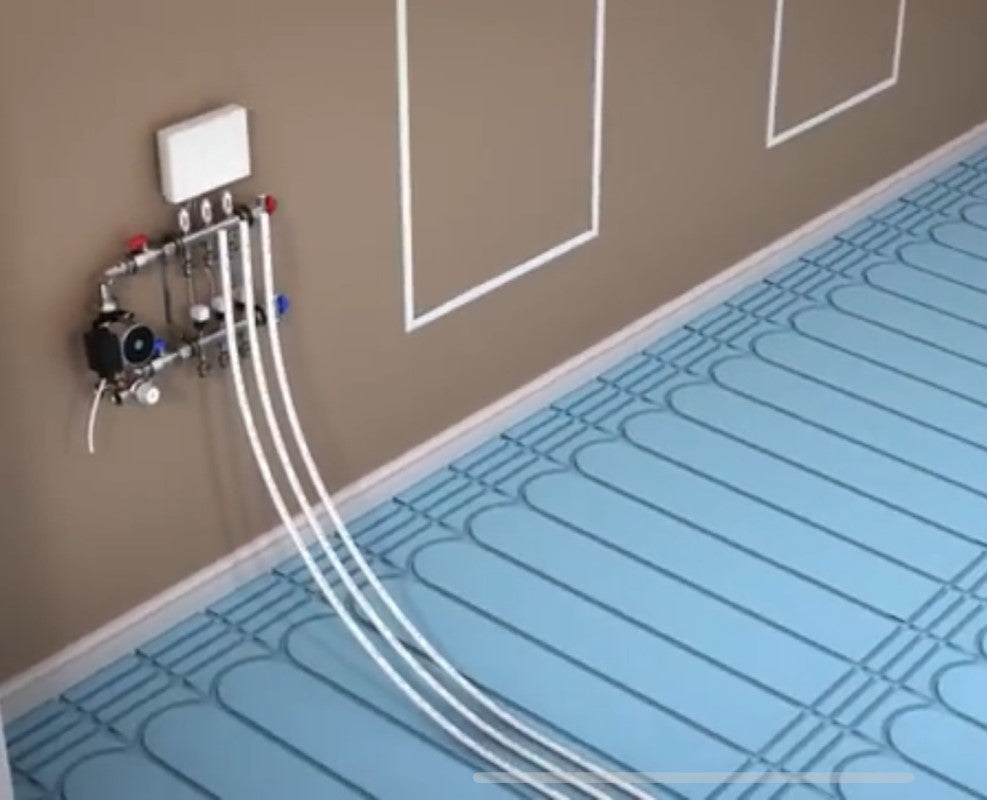

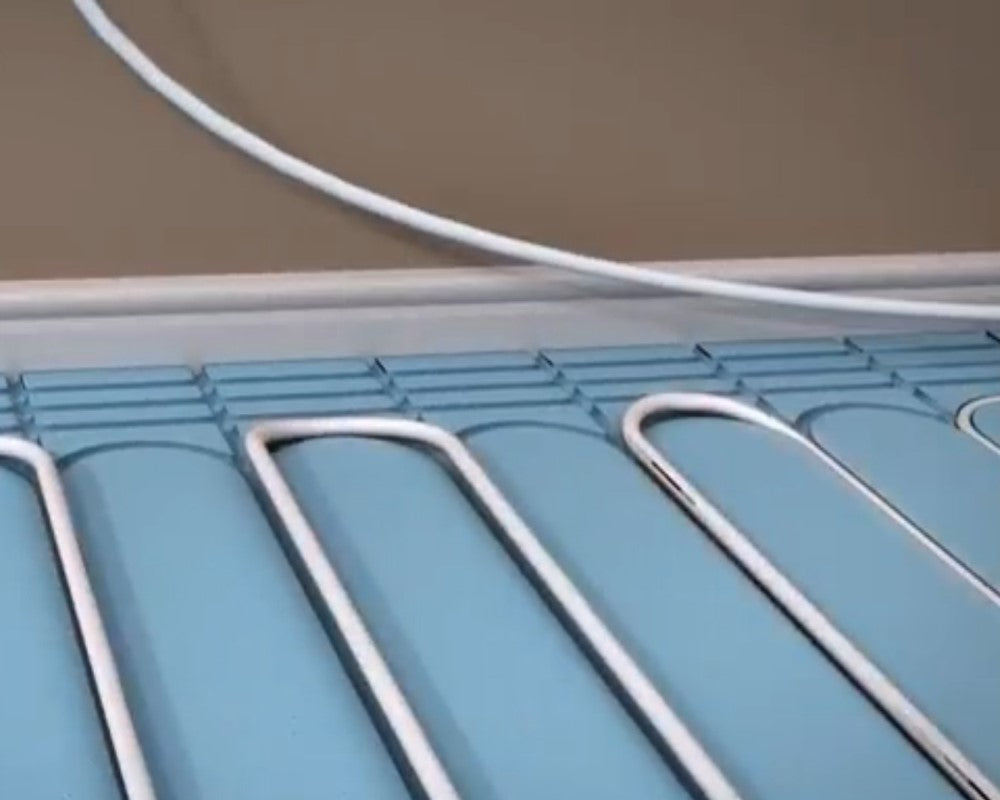

Grooved Design: The top surface of the insulation boards features grooves that are designed to securely hold the underfloor heating pipes in place. The grooves are specifically sized to accommodate pipes with a diameter of 16mm with 150mm gaps between.
-
Thermal Efficiency: XPS grooved insulation boards enhance the thermal efficiency of the underfloor heating system. By providing insulation and reducing heat loss, they help maximize the heat output into the room, resulting in improved energy efficiency and comfort.
-
Easy Installation: These insulation boards are typically lightweight and easy to handle, simplifying the installation process. The grooves in the boards provide a secure and stable surface for positioning and securing the underfloor heating pipes.
-
Compatibility with Different Floor Finishes: XPS grooved insulation boards can be used with various floor finishes, tiles, laminate and engineered wood can be laid directly on top without the need to screed over first, They provide a smooth and level surface for the floor covering to be installed.
Also Available With Aluminium CoatingÂ
