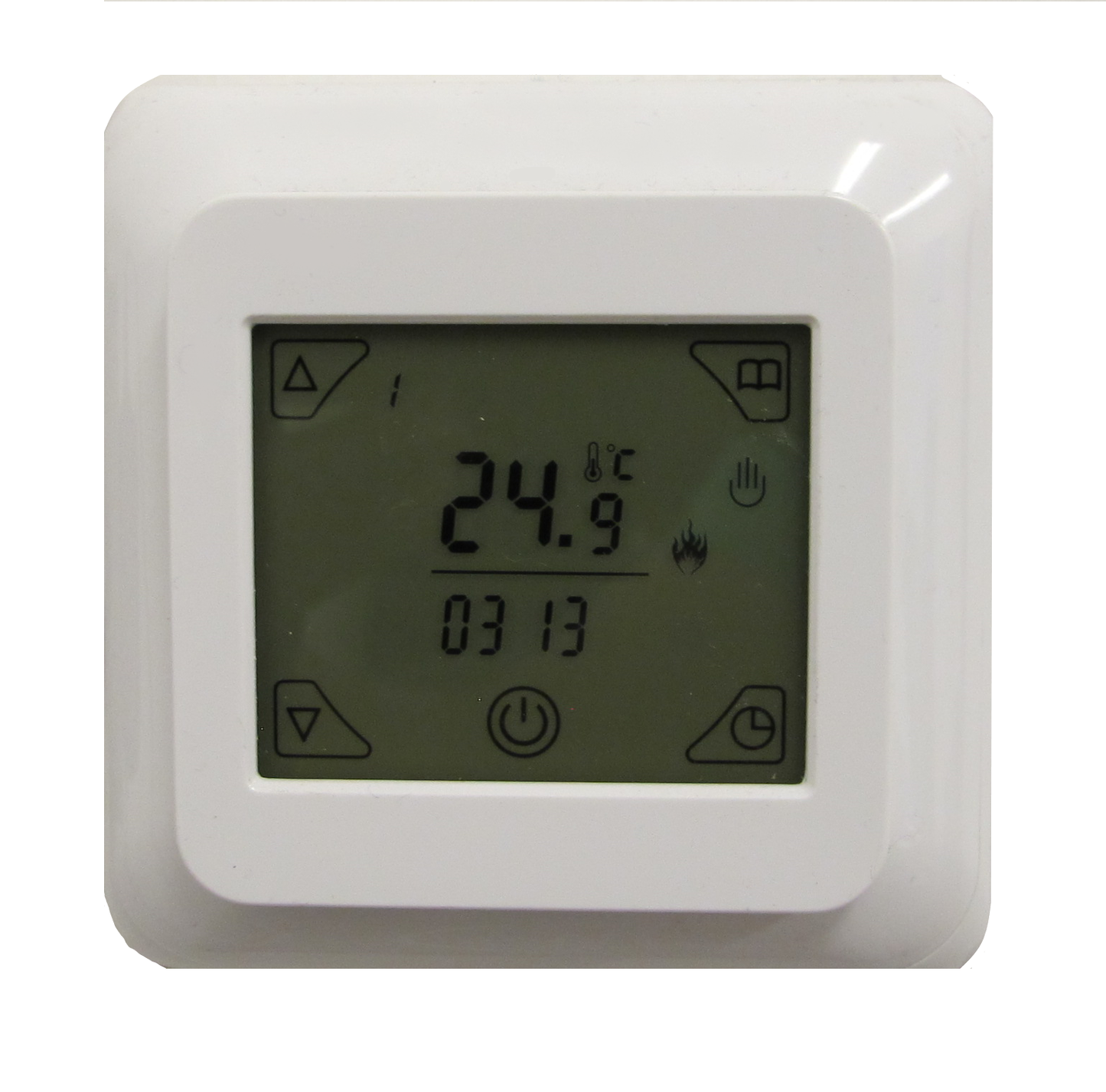

Touch Thermostat | White | WarmLife 91 | 3m Sensor Wire

White Thermostat Programmable Touchscreen Electric / Water Underfloor Heating

These are a quality programmable thermostat that provide precise control of the ambient temperature with a floor limit and is easily configured to control the temperature and timings for most Underfloor Heating systems.

Full Specification

Programming

Choice of 7 day, 5/2 day programmable or

Non-programmable (installer selectable)

6 time and 6 temperature settings per day;

Pre-programmed or personalised schedule;

Energy savings up to 33%Display

Compact touchscreen display

Illuminated display for easier low-light viewing

Touch screen operator interface

Symbol indicator when heating is on

Key lock function to protect settings

Easier Navigation, Comfort & Convenience

Intuitive menu-driven set-up, programming and operation,

with audio prompt to confirm touchscreen entries;

Permanent program retention during power loss;

Setpoint temperature limited range capable;

Enhanced touchscreen security prevents tampering.

Room temperature display can be recalibrated

Can switch upto 16 amps (230v)

Temperature display resolution: 0.1 C;

Temporary temperature override;

C / F temperature format selection by buttons;

Air / floor temperature calibration separately

A / AF/ F models all in one

Combination of 3 models;

A - Air only, with built-in sensor;

F - Floor only,controls floor temperature;

AF - Controls air temperature with ability to limit the floor temperature

Each thermostat is equipped with built-in sensor

3 meter floor sensor. The floor sensor can be extended.Specifications

Power supply: 230VAC (120VAC optional)

Inputs: NTC10K temperature sensors

Output: 1 x switch relay(R1),max 3500watts

Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]

Operating RH: 0~95% (non condensing).

Dimensions: 86mm x 86mm x 16mm

Backlight life: 5,000 hours.

Battery type:  (Backs up clock only)

Battery life: > 5years (10 years Maximum)

Useful settings

Vacation mode(frost protection mode)

24hr/12hr clock format selection

Switching differential setting

Floor temperature limit
