Underfloor heating has become one of the most efficient and comfortable ways to heat modern homes. One of the quickest and cleanest installation methods is using GBHOME XPS Grooved Insulation Boards, which are specifically designed to hold heating pipes securely in place while improving thermal efficiency.
What Are XPS Grooved Insulation Boards?
XPS grooved insulation boards are rigid extruded polystyrene panels with pre-cut channels designed to accommodate underfloor heating pipes. The grooves allow pipes to sit securely within the board without the need for extensive fixing systems or thick screed layers.
The GBHOME boards are manufactured from 300kPa XPS insulation and are designed for 16mm underfloor heating pipe with 150mm pipe spacing. They can be used beneath laminate, tiles, and engineered wood flooring.
Benefits of Using Grooved XPS Boards
Using grooved insulation boards offers several advantages over traditional screeded systems:
- Faster installation times
- Lower floor build-up height
- Improved heat-up response
- Reduced heat loss into the subfloor
- Easier retrofit installations
- No need for heavy wet screed in many applications
The aluminium-coated versions also help distribute heat more evenly across the floor surface.
Step-by-Step Guide to Installing Pipes in XPS Grooved Boards
1. Prepare the Subfloor
Before laying the insulation boards, ensure the subfloor is:
- Clean
- Dry
- Level
- Structurally sound
Any major unevenness should be corrected beforehand to prevent movement in the finished floor.
Concrete and timber subfloors can both be used, although a damp-proof membrane may be required depending on the installation area.
2. Lay the XPS Grooved Boards
Position the grooved boards tightly together across the floor area.
The GBHOME boards measure 1200mm x 600mm and are lightweight, making them easy to cut and handle during installation.
If needed, boards can be trimmed using a utility knife or fine-tooth saw to fit around edges and corners.
For best performance:
- Stagger board joints where possible
- Avoid gaps between boards
- Ensure grooves align correctly for pipe runs

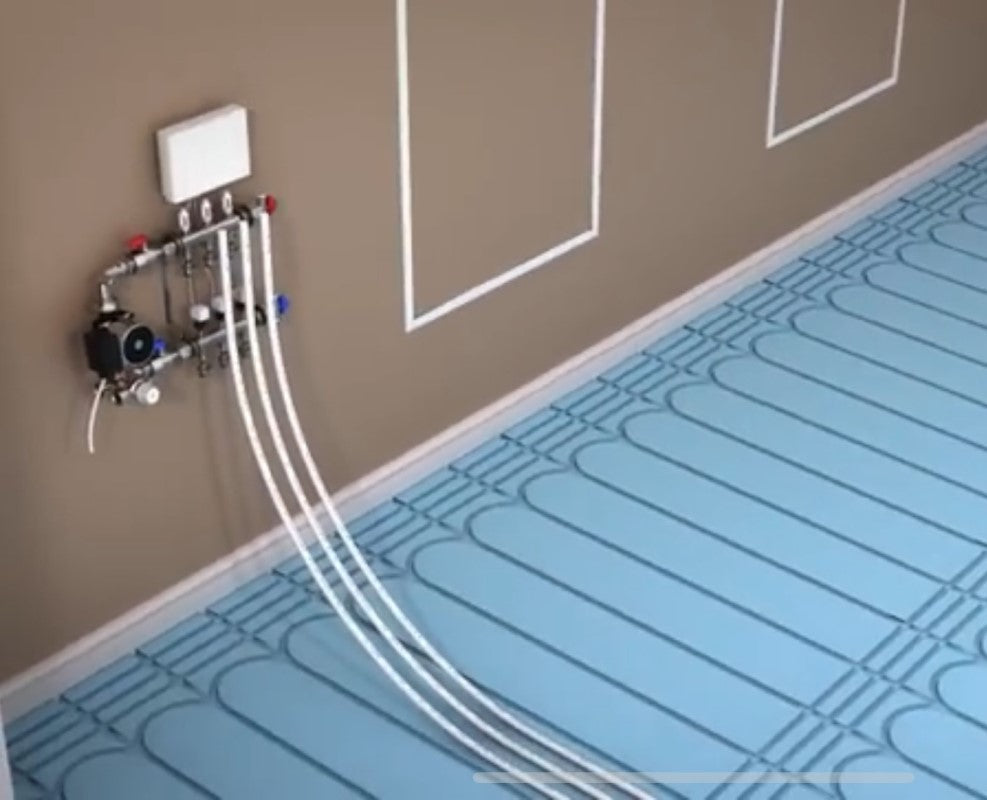

3. Plan Your Pipe Layout
Before inserting pipes, map out the heating circuit carefully.
Most systems use:
- Serpentine layout
- Spiral layout
The GBHOME boards are designed for 16mm pipe with 150mm centres, helping maintain consistent heat output throughout the room.
Keep pipe runs evenly spaced and avoid tight bends that could stress the pipe.
4. Press the Pipes into the Grooves
Once the layout is planned, simply press the 16mm heating pipe firmly into the pre-cut grooves.
The grooves are designed to hold the pipes securely in place without additional clips or staples in most installations.
Tips for installation:
- Start near the manifold position
- Avoid kinking the pipe
- Use gentle pressure when bending
- Double-check spacing consistency
5. Pressure Test the System
Before covering the floor, pressure test the heating system to check for leaks.
This is a critical step and should always be completed before laying the final floor covering.
6. Install the Floor Finish
One major advantage of grooved XPS systems is that many floor finishes can be installed directly on top without full screeding.
According to GBHOME, laminate and engineered wood flooring can be laid directly over the boards.
Tiles may require:
- Flexible adhesive
- Decoupling membrane
- Self-levelling compound depending on manufacturer recommendations
Some installers also use a thin levelling layer for additional rigidity and improved finish quality. Discussions within DIY and installer communities often mention latex or renovation screed as a practical option for tiled finishes.
Are XPS Grooved Boards Suitable for Retrofit Projects?
Yes — this is one of their biggest advantages.
Because the system has a relatively low profile compared to traditional screeded underfloor heating, grooved XPS boards are ideal for:
- Renovations
- Extensions
- Timber floors
- Projects with restricted floor height
They also provide insulation directly beneath the heating pipes, improving system efficiency by directing heat upward into the room instead of downward into the subfloor.
Final Thoughts
XPS grooved insulation boards offer a fast, efficient, and installer-friendly way to fit water underfloor heating systems. Their pre-routed channels simplify pipe installation while the insulated core helps improve heating performance and reduce warm-up times.
For homeowners and installers looking for a low-profile underfloor heating solution, GBHOME XPS Grooved Insulation Boards provide a practical option suitable for both new builds and retrofit projects.
